Fairino FR5-WML Collaborative Robot

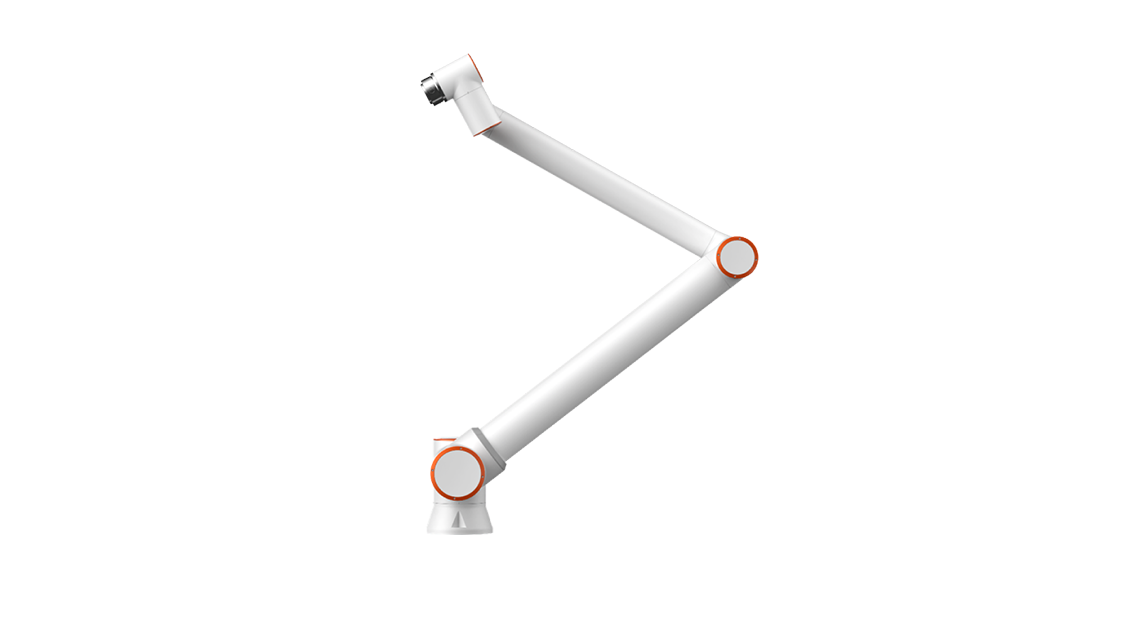

Fairino FR5-WML – 6-Axis Collaborative Robot with 1900 mm Reach

The Fairino FR5-WML is a 6-degree-of-freedom collaborative robot developed within the FR5 series for applications requiring extended spatial coverage.

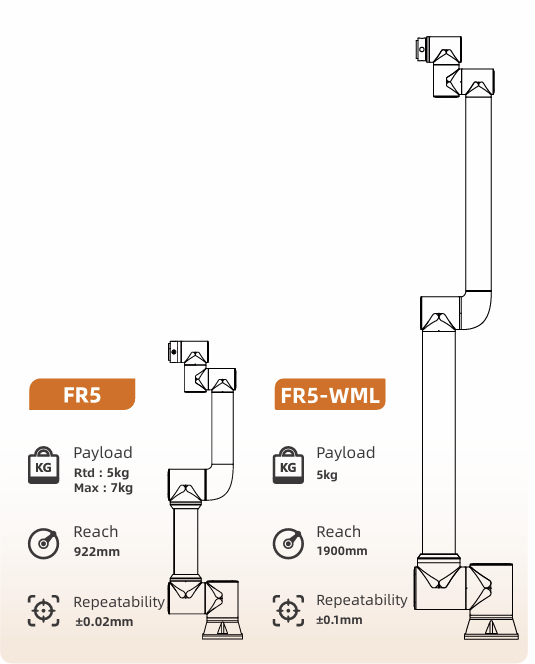

The robot provides a 5 kg payload and a 1900 mm reach, significantly expanding the working envelope compared to the standard FR5 configuration.

Mechanical and Motion Specifications

Payload: 5 kg
Reach: 1900 mm
Degrees of freedom: 6 rotating joints
Pose repeatability (ISO 9283): ±0.1 mm
Maximum TCP speed: 2 m/s

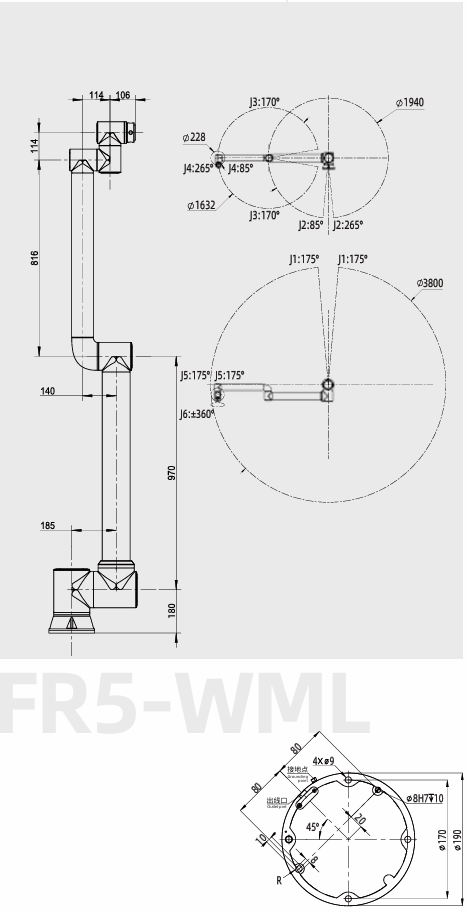

Axis Working Range and Maximum Speed

Base: ±175° | ±120°/s
Shoulder: +85° / -265° | ±120°/s
Elbow: ±170° | ±180°/s
Wrist1: +85° / -265° | ±180°/s
Wrist2: ±175° | ±180°/s
Wrist3: ±360° | ±180°/s

Physical and Environmental Specifications

Footprint: 190 mm
Weight: ≤45 kg
IP classification: IP54 (IP65 optional)
Noise: <65 dB
Operating temperature: -20° to 45°C
Operating humidity: 90% RH (non-condensing)
Materials: Aluminium, Steel

Power Consumption

Typical average power: 270 W
Typical peak power: 620 W

The Fairino FR5-WML collaborative robot is suitable for industrial automation scenarios where extended reach and higher TCP speed provide advantages compared to the standard FR5 configuration.

‍
