FR10

Agile, Accurate, and VersatileThe Fairino FR10 hits the sweet spot for flexibility. With a payload of 10 kg, it’s ideal for machine tending, palletizing, packaging, screwdriving, dispensing, and vision-guided pick & place. Programming and control are easy—build no-code workflows in the WebApp or write advanced scripts via our SDKs. With broad integration options, the FR10 drops smoothly into existing production lines and software systems.

€ 0.00 EUR
Quote

Included

  • cobot
  • cables
  • controller
  • software
  • buttonbox
  • support to get started

‍

FR10
Fairino safety button box with emergency stop, enable, and control wiring diagram for cobot operation
Fairino cobot accessories overview including teach pendant, smart tool, safety box, and grippers
Technical drawing of ISO 9409-1 robot end-effector flange for Fairino collaborative robots

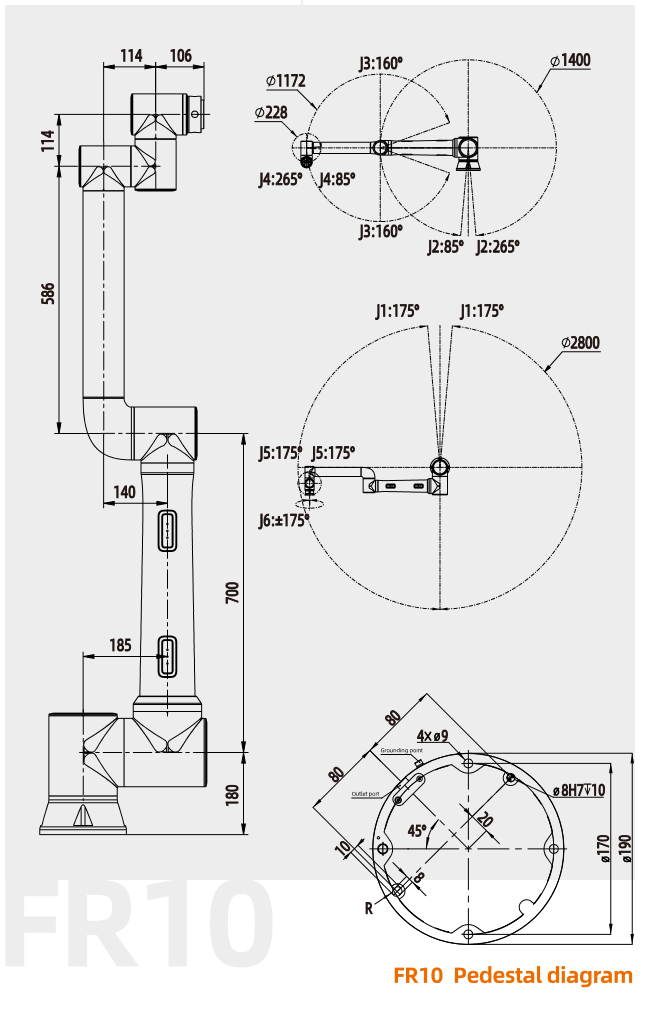

Mechanical drawing of Fairino FR10 collaborative robot with dimensions and mounting details

Product description

Fairino FR10 – Powerful, Versatile, and Intelligently Programmable

The Fairino FR10 is the perfect combination of strength and precision. With a payload of 10 kg and a reach of 1400 mm, this cobot excels in machine tending, logistics, assembly, and quality control. Its repeatability of ±0.05 mm ensures reliable performance, even under heavy loads.

Designed for maximum flexibility, the FR10 offers unlimited control possibilities and supports SDKs in various programming languages. Whether you're working through an intuitive WebApp, teach pendant, or full automation system, the FR10 adapts quickly and is easy to program to your specific needs.

‍

  • ‍Payload: 10 kg
  • ‍Reach: 1400 mm
  • ‍Repeatability: ±0.05 mm
  • ‍IP Rating: IP54 (optional IP65)
  • SDKs & APIs for developers included
  • License-free software

Useful links

Full Documentation
SDK DocumentationPython SDKC# SDKC++ SDKJava SDK
Dimensional Drawings2D CAD3D STEPCertifications
