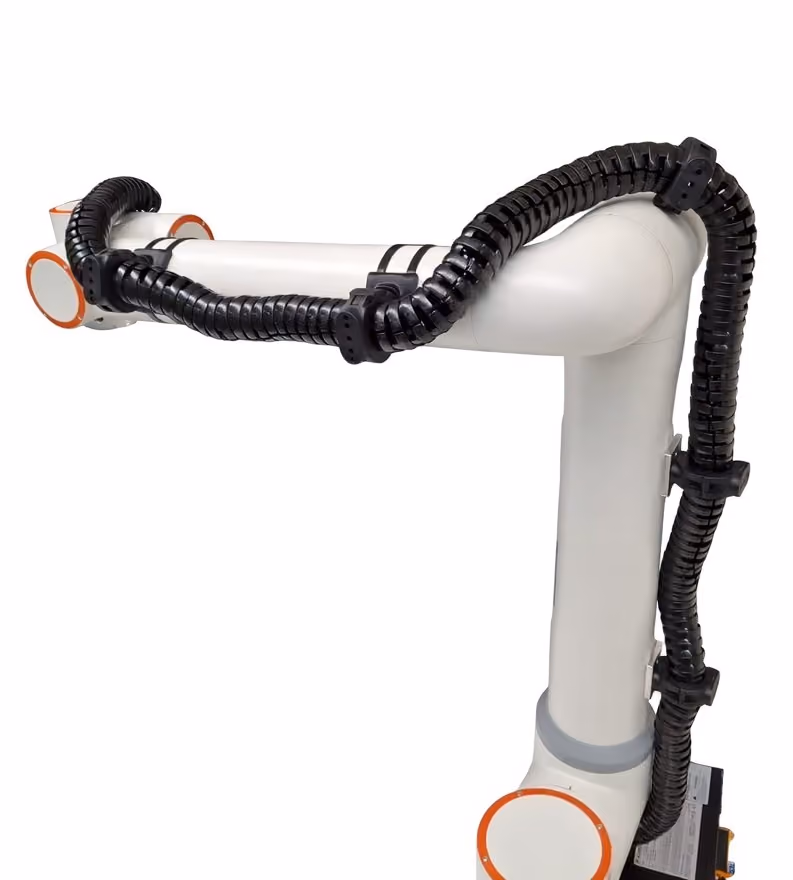

3D Drag Chain for the Fairino FR10 Cobot

Name: 3D Drag Chain Fairino FR10
Brand: Fairino
SKU: FR10-CHAIN

€ 398,00

Price on request

Restocking

Ordering & Delivery

Order via official quotation, cart, or contact form.

All prices are excl. VAT and ex works Belgium.

In Stock items are typically dispatched within 1–2 working days.

For Restocking or other lead-time items, request the exact delivery time.

Overview

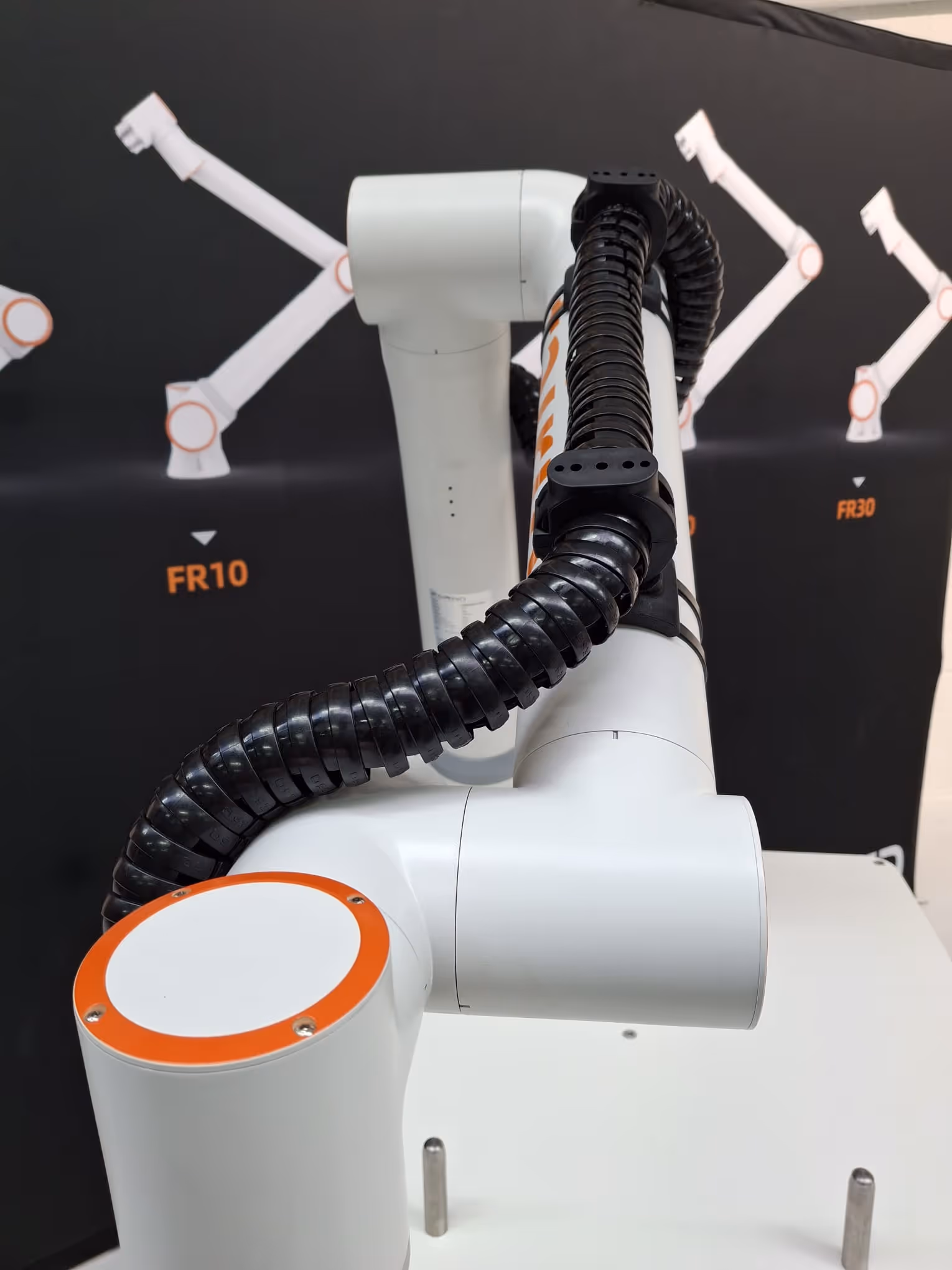

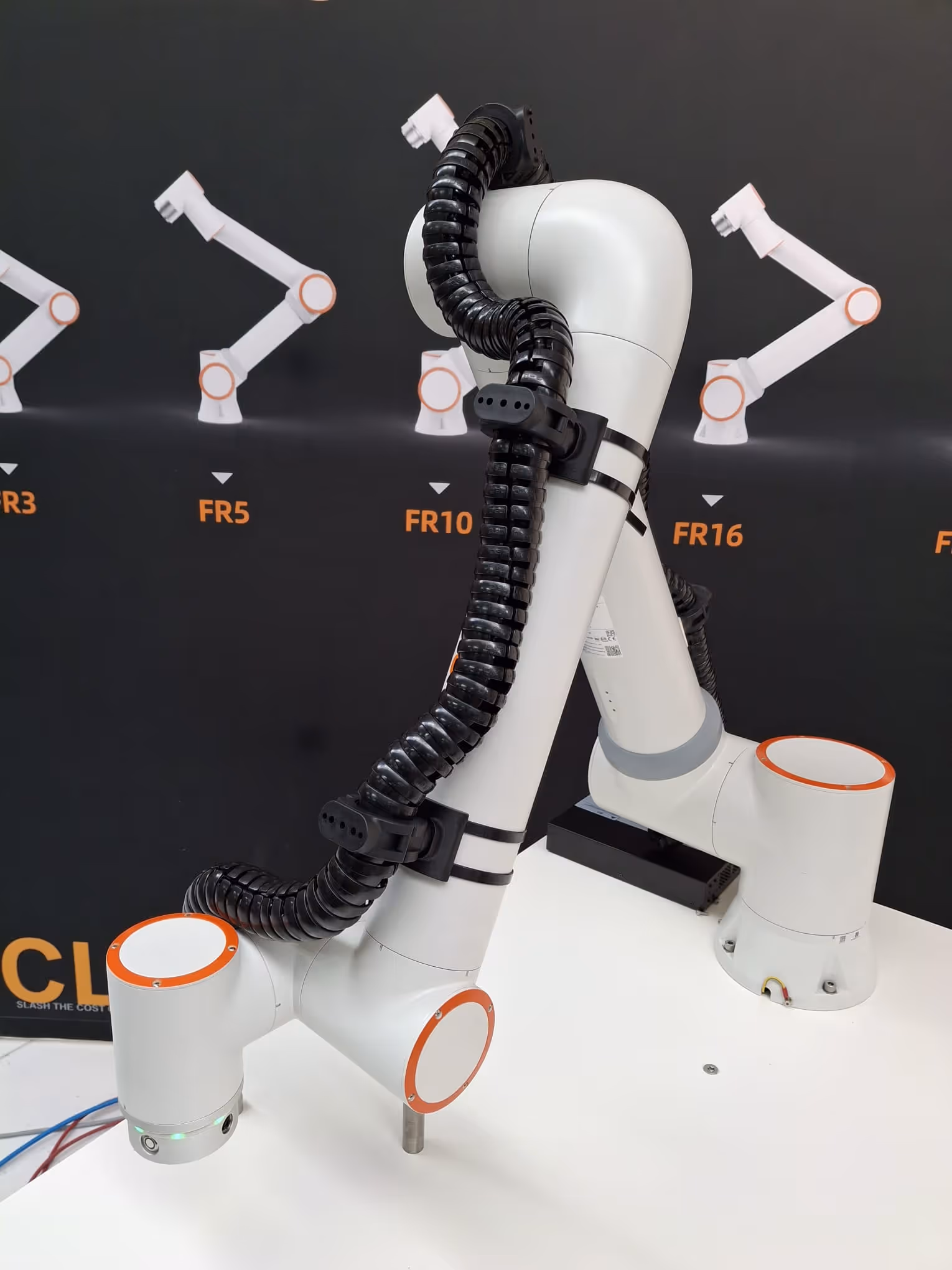

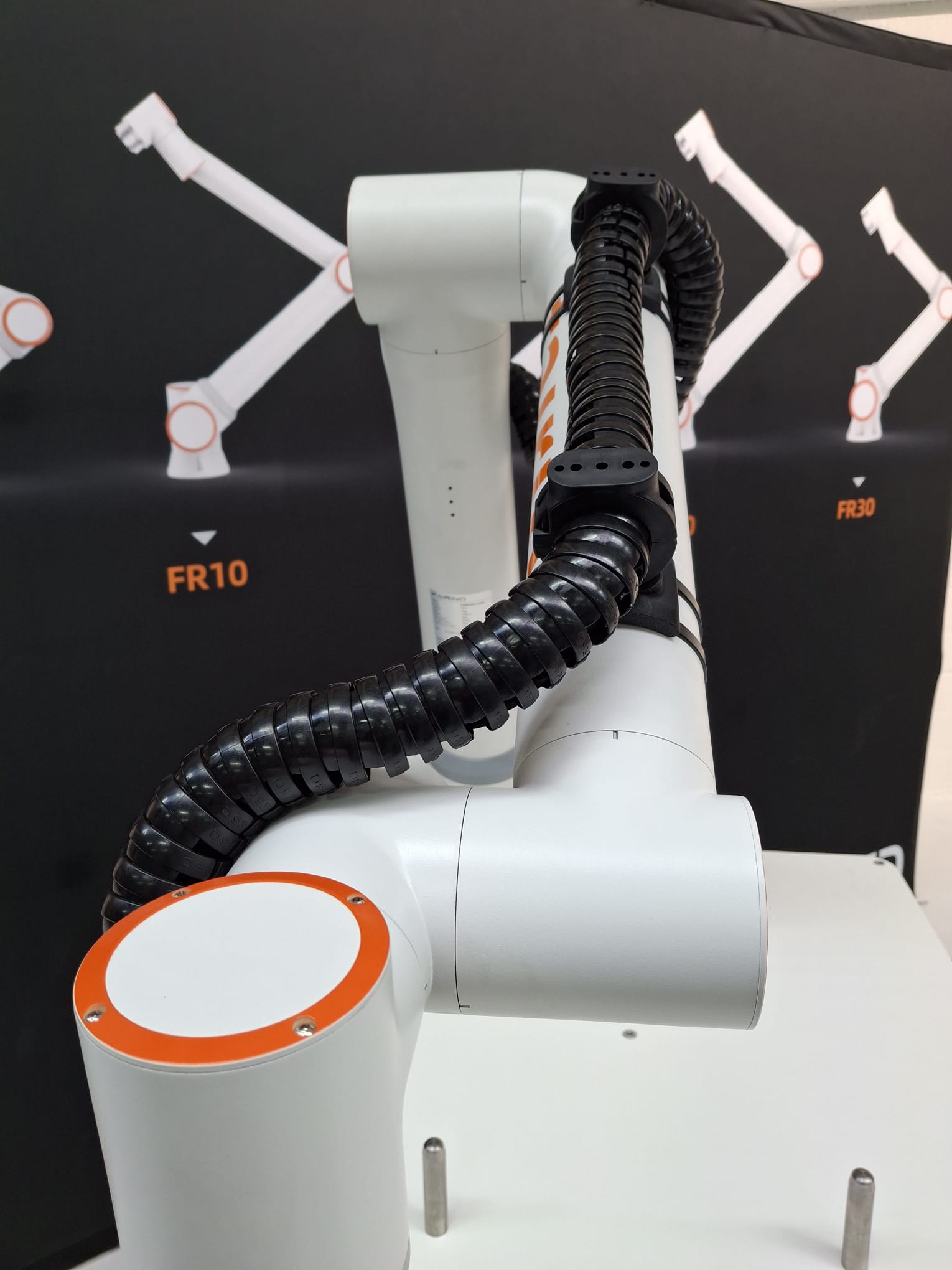

The 3D drag chain for the Fairino FR10 collaborative robot (cobot) offers reliable cable and air-line management for medium-payload tasks. With a 2 m length and a 37 mm internal channel, it safely routes electrical wiring and pneumatic hoses along the robot arm. Its side-open structure allows fast insertion of new lines. The kit includes 2 rounded mounts that follow the arm contour and 2 screw-on mounts that fit directly into the existing threaded holes of the FR10 cobot arm, giving both flexibility and secure installation.

Included

2 m drag chain (37 mm diameter)
2 rounded mounts for flexible positioning
2 screw-on mounts for direct arm attachment
Click-fit system for drag chain connection
Screw set for mount installation

Product description

The Fairino FR10 3D drag chain is engineered for robust and adaptable cable routing in collaborative robot (cobot) automation. Its 37 mm diameter provides enough space for multiple power lines, signal cables, and compressed-air hoses, making it suitable for a wide range of tooling setups. The chain’s open side system makes it quick to press in new lines without disassembly, ideal for environments where frequent changes or maintenance are required.

‍

Mounting flexibility is a key advantage: two rounded mounts attach via click-fit around the cobot arm for versatile positioning, while two screw-on mounts connect directly to pre-machined holes on the Fairino FR10 cobot arm, ensuring a rigid and durable anchor point. This hybrid system allows operators to balance stability with adjustability, preventing cable strain and maintaining a clean, safe setup. The result is an organized and long-lasting cable management solution that supports the full performance of the Fairino FR10 cobot.

‍

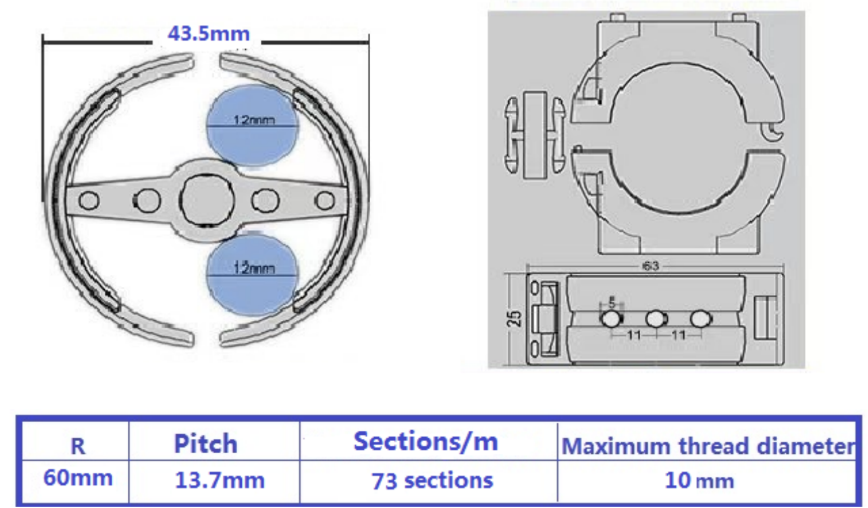

Specifications Fairino FR10 3D Drag Chain:

Length: 2 m
Diameter: 37 mm
Mounts: 2 rounded + 2 screw-on mounts
Design: Side-open for fast cable and air hose insertion
Compatibility: Fairino FR10 collaborative robot (cobot)

‍

Show full specifications of all Fairino cobots

Fairino support & downloads

Support & downloads hub

Datasheets, user manuals, 3D STEP models, CE certificates and free SDKs (Python, C++, ROS) for every Fairino cobot — all in one place, with local support from Belgium.

Open support & downloads

Dimensional drawings & 3D models

STEP files and dimensional drawings of the full Fairino FR series, ready for your CAD layout and cell design.

Get CAD files

Official Fairino documentation

The Fairino manual chapters our customers use most: installation, programming, safety and maintenance — curated by TMC Robotics.

Browse documentation

Frequently asked questions

Which cobot does the 3D Drag Chain FR10 fit?

It is made for the Fairino FR10: 2 screw-on mounts fit the existing threaded holes of the arm and 2 rounded mounts follow the arm contour. The chain is 2 m long with a 37 mm channel.

What can I route through the FR10 drag chain?

Electrical wiring and pneumatic hoses for your end-of-arm tooling. The side-open structure allows fast insertion of new lines at any time.

What is included with the 3D Drag Chain FR10?

€ 0,00

Ask Quote

30 kg • 1403 mm • ±0.1 mm
