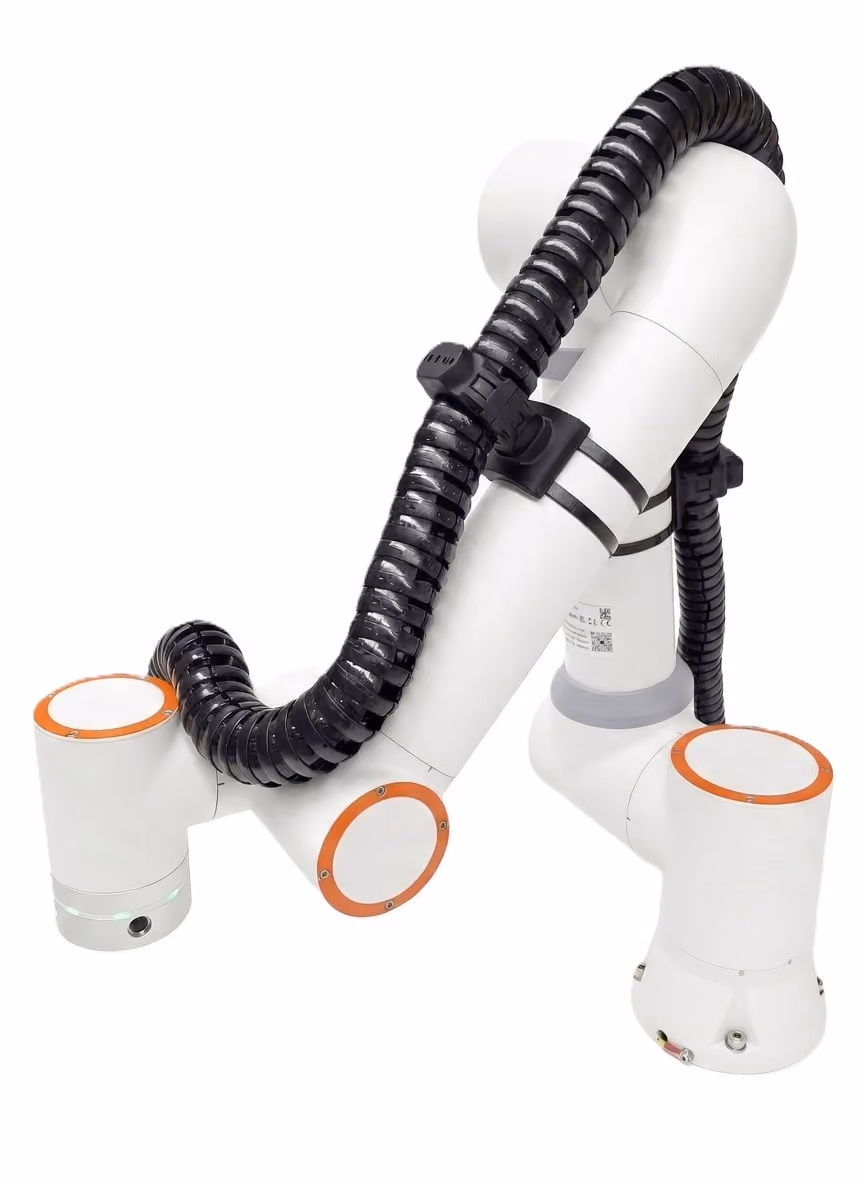

3D Drag Chain for Fairino FR3 & FR5 Cobots

The Fairino FR3/FR5 3D drag chain provides a practical, durable, and flexible solution for routing both electrical cables and compressed-air hoses on collaborative robots (cobots). With its 37 mm channel and 2 m length, it offers ample space for multiple utilities while keeping them protected against tangling and wear. The open side design allows operators to simply press cables or hoses into the chain, saving time during installation or maintenance compared to traditional closed drag chains.

‍

The included rounded mounts are shaped to fit the contour of the Fairino FR3 and FR5 cobot arms. They attach securely with a click system while still allowing full flexibility in placement, so additional slack can be left where necessary to avoid strain. This makes it easy to adapt the setup to different end-of-arm tooling and production environments. Whether used for simple signal lines or combined power and pneumatic feeds, the 3D drag chain keeps everything neatly in place, ensuring reliability and extending cable life.

‍

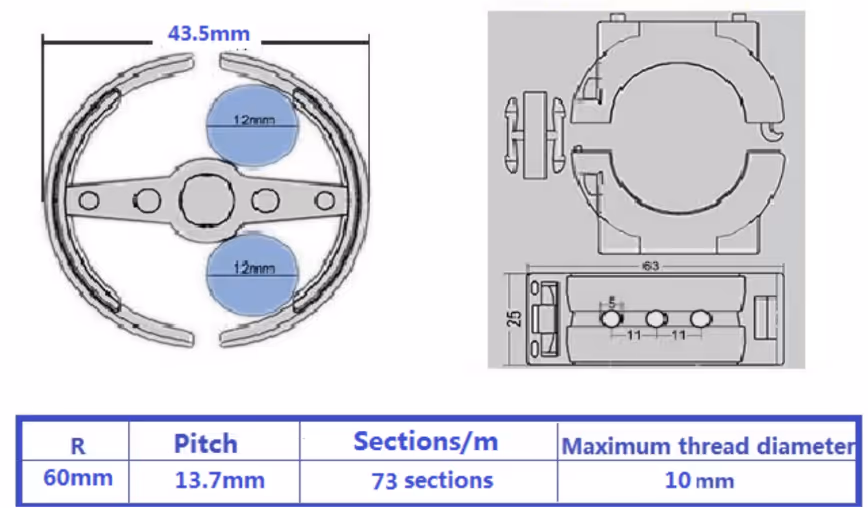

Specifications Fairino FR3/FR5 3D Drag Chain:

• Length: 2 m
• Diameter: 37 mm
• Mounts: 4 rounded mounts, click-fit attachment
• Design: Side-open for easy cable and air hose insertion
• Compatibility: Fairino FR3 and FR5 collaborative robots (cobots)

‍
