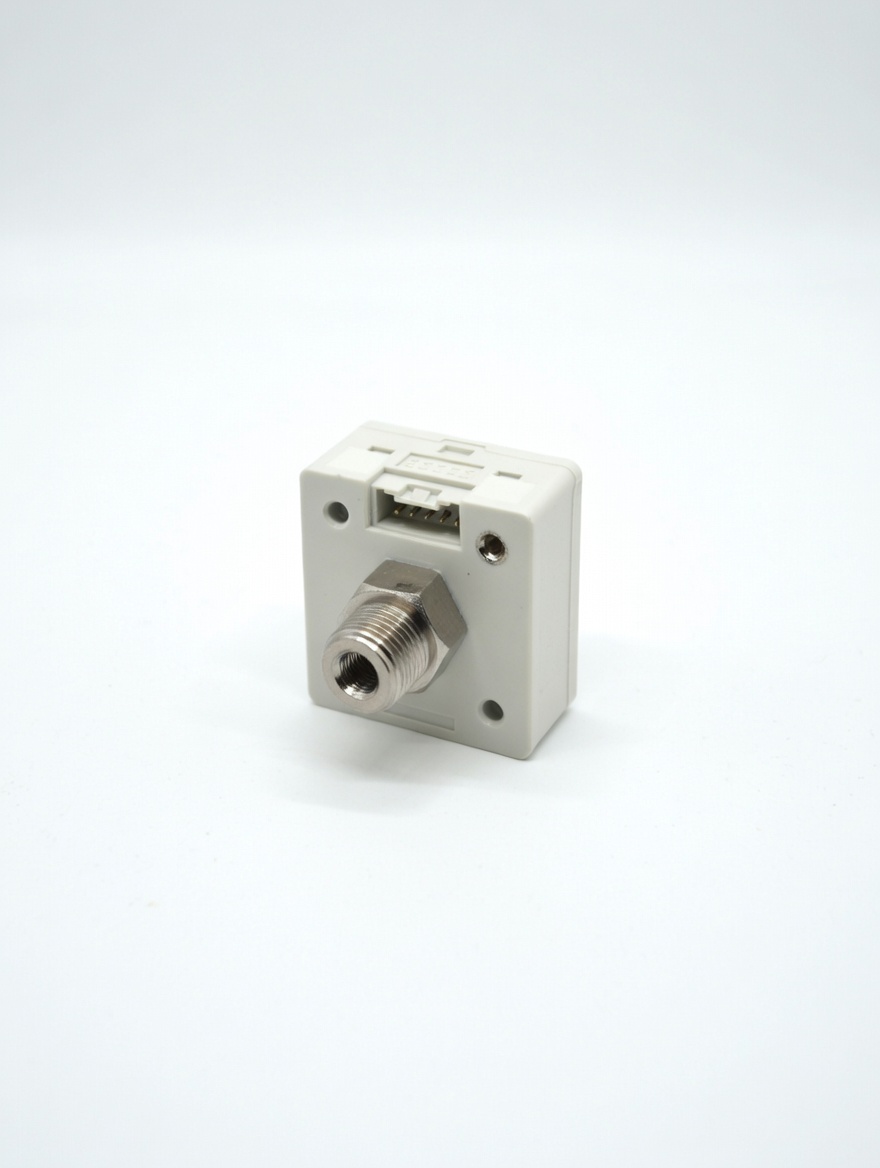

The DPSN1 / DPSP1 digital pressure switch delivers precise vacuum and pressure detection for non-corrosive gases. Its two-color (red/green) dual-row LCD shows the live measured value and the setpoint at the same time, so operators can monitor and adjust the unit at a glance. With two independent switching outputs, three output modes and a wide choice of delay and response times, it integrates easily into vacuum grippers, pick-and-place cells and other automation built around Fairino cobots.
The switch is available with NPN output (DPSN1) or PNP output (DPSP1), and in two pressure ranges: a compound vacuum range of −100 to 100 kPa (-01) or an extended range of −100 to 1,000 kPa (-10).
Key features
- Two-color LCD (red/green) with dual-row display: 4-digit measured value and 3.5-digit setpoint
- Two independent switching outputs
- Selectable transistor output: NPN (DPSN1) or PNP (DPSP1)
- Three output modes: basic, hysteresis and window comparator
- Adjustable output delay and display refresh times
- Multiple selectable pressure units
- Vibration- and shock-resistant construction
- Ideal for vacuum detection on suction-cup and foam grippers
Technical specifications
- Power supply: 12–24 V DC ±10%, ripple (p-p) < 10%
- Fluid: Non-corrosive gas
- Measurement range: -01: −100 to 100 kPa · -10: −100 to 1,000 kPa
- Withstand pressure: -01: 200 kPa · -10: 1,500 kPa
- Measurement error: ±2% F.S., ±1 digit (at 25 ±3°C)
- Repetitive accuracy: ±0.2% F.S.
- Temperature error: ±3% F.S. (base 25°C, range 0–50°C)
- Display type: Double-row LCD — 4-digit measurement, 3.5-digit setting
- Display color: 2-color LCD (red / green)
- Display period: 100 / 250 / 500 / 1,000 ms
- Output group: DPSN1: two NPN outputs · DPSP1: two PNP outputs
- Transistor output: max. 30 V / 100 mA, residual voltage < 1.5 V
- Output delay time: 2 / 20 / 50 / 100 / 250 / 500 / 1,000 / 2,500 / 5,000 ms
- Hysteresis: -01: 0.1–0.8 kPa · -10: 1–8 kPa
- Output mode: basic, hysteresis, window comparator
- Pressure units (-01): kPa, kgf/cm², bar, psi, mmHg, inHg
- Pressure units (-10): MPa, kPa, kgf/cm², bar, psi, cmHg, inHg
- Vibration resistance: 10–150 Hz, 1.5 mm amplitude, 2 h each in X/Y/Z (unpowered)
- Impact resistance: max. 100 m/s², 3 times each in X/Y/Z
- Operating temperature: 0 to 50°C
- Storage temperature: −20 to 65°C
- Humidity: 35–80% RH (no condensation)
Available models
- DPSN1-01 / DPSP1-01 — compound vacuum range −100 to 100 kPa
- DPSN1-10 / DPSP1-10 — range −100 to 1,000 kPa
- DPSN1 = NPN output · DPSP1 = PNP output
