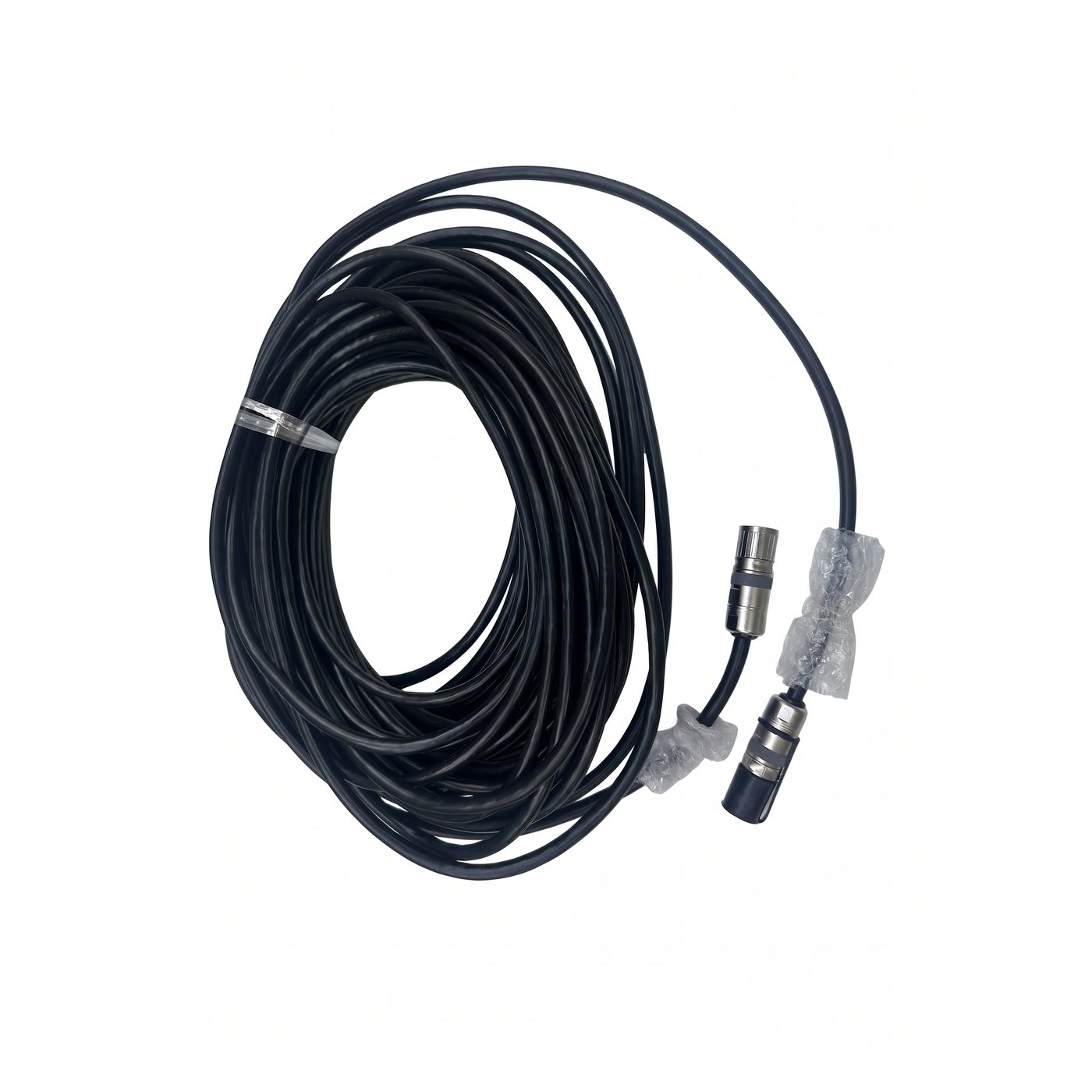

The Fairino Extension Cable is designed to increase the distance between a Fairino collaborative robot and its controller.
In many installations the controller cannot be placed directly next to the robot — for example when it needs to be mounted in a separate room, inside a control cabinet, or simply further away from the robot cell. This extension cable provides an additional 11 metres of reach, giving you the freedom to position the controller wherever it suits your setup.
The cable connects directly to the standard 4-metre Fairino cable, creating a total cable length of 15 metres between the robot arm and the controller. No additional adapters or modifications are required.
The Fairino Extension Cable is compatible with all Fairino cobot models, making it a universal solution across the entire Fairino range.
Key Features
- Adds 11 metres of distance between cobot and controller
- Connects to the standard 4 m Fairino cable
- Total reach of up to 15 metres
- Compatible with all Fairino cobot models
- Plug-and-play connection, no modifications required
- Industrial-grade construction for reliable operation
Technical Specifications
- Cable Length: 11 metres
- Cable Diameter: 11 mm
- Connector Diameter: 26 mm
- Maximum Total Cable Length: 15 metres (4 m + 11 m)
- Compatibility: All Fairino cobot models
Compatible Fairino Cobots
- FR3
- FR3WMS
- FR3WML
- FR5
- FR5WML
- FR10
- FR16
- FR20
- FR30
Important Note
Only one extension cable can be connected per cobot. The maximum total cable length is 15 metres. Extending beyond this length causes excessive voltage drop in the cable, which can prevent the cobot from functioning correctly.
Applications
- Controller mounted in a separate room
- Controller installed in a remote control cabinet
- Large or elevated robot cells
- Flexible workspace layouts
- Mobile or reconfigurable robot installations
