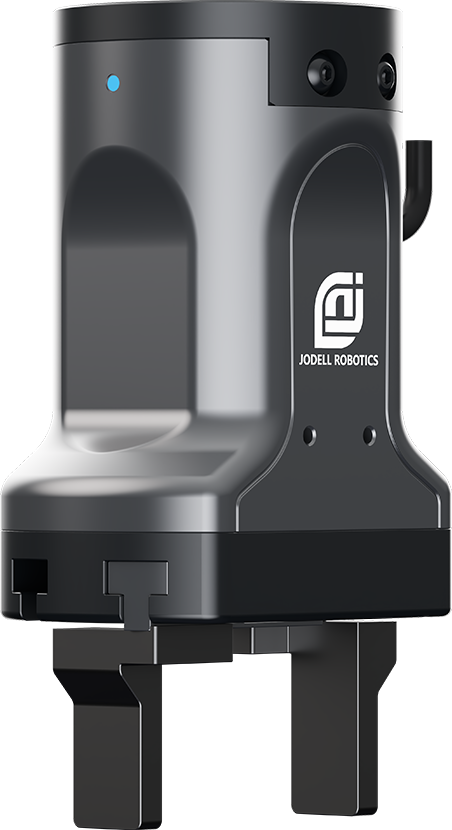

The RG75-300 Electric Parallel Gripper is engineered for demanding automation environments requiring high force, precision, and reliability. Its robust design and advanced control capabilities make it an ideal end-of-arm tool for industrial robots and collaborative robots.
With an adjustable stroke of up to 75 mm and a gripping force ranging from 40 to 300 N, the RG75-300 provides secure handling of a wide variety of components. A repeatability of ±0.02 mm ensures exceptional positioning accuracy, making it suitable for precision assembly, packaging, and material handling applications.
The gripper supports Modbus RTU communication via RS485, allowing seamless integration with PLCs, industrial automation systems, and Fairino cobots. Its IP65-rated housing guarantees reliable operation in demanding industrial environments, while its compact and durable construction ensures long-term performance.
For safe operation, the RG75-300 combines drop detection with a self-locking drive. If a workpiece is unexpectedly released, the gripper signals it immediately. And if power is lost, the self-locking mechanism holds the fingers in position and maintains grip force at any point in the stroke, preventing the part from falling.
Key Features
- Gripping force up to 300 N
- Adjustable stroke up to 75 mm
- High repeatability of ±0.02 mm
- Modbus RTU (RS485) communication
- IP65 protection for industrial environments
- Compatible with cobots and industrial robots
- Drop detection — signals immediately if a workpiece is accidentally released
- Self-locking on power failure — retains grip position and force if power is lost, so the workpiece does not fall
- Low operating noise (< 40 dB)
- CE and RoHS compliant
- Easy integration into automated systems
Technical Specifications
- Model: RG75-300
- Gripping Force (per finger): 40–300 N
- Adjustable Stroke: 0–75 mm
- Opening/Closing Time: 0.55 s
- Repeatability: ±0.02 mm
- Maximum Recommended Payload: 6 kg
- Protection Rating: IP65
- Communication Protocol: Modbus RTU (RS485)
- Supply Voltage: DC 24 V ±10%
- Maximum Current: 1.5 A
- Rated Current: 0.55 A
- Operating Noise: < 40 dB
- Operating Temperature: 5–40°C
- Relative Humidity: < 85% RH
- Weight: 1.5 kg
- Vertical Static Load (Fz): 400 N
- Maximum Static Moment (Mx): 8 Nm
- Maximum Static Moment (My): 8 Nm
- Maximum Static Moment (Mz): 8 Nm
- Certifications: CE, RoHS
Applications
- Pick-and-place automation
- Machine tending
- Assembly operations
- Packaging and logistics
- Electronics manufacturing
- Quality inspection systems
- Research and education
- Collaborative robotics and industrial automation
