Controller Mounting Brackets for Fairino 2 kW MINI Controllers

These mounting brackets give the Fairino 2 kW MINI controller a fixed, vibration-proof place inside an electrical cabinet, machine frame or any other flat surface in your installation. Instead of leaving the controller loose on a shelf, the brackets clamp it securely so cables stay in place and the cabinet stays organised.

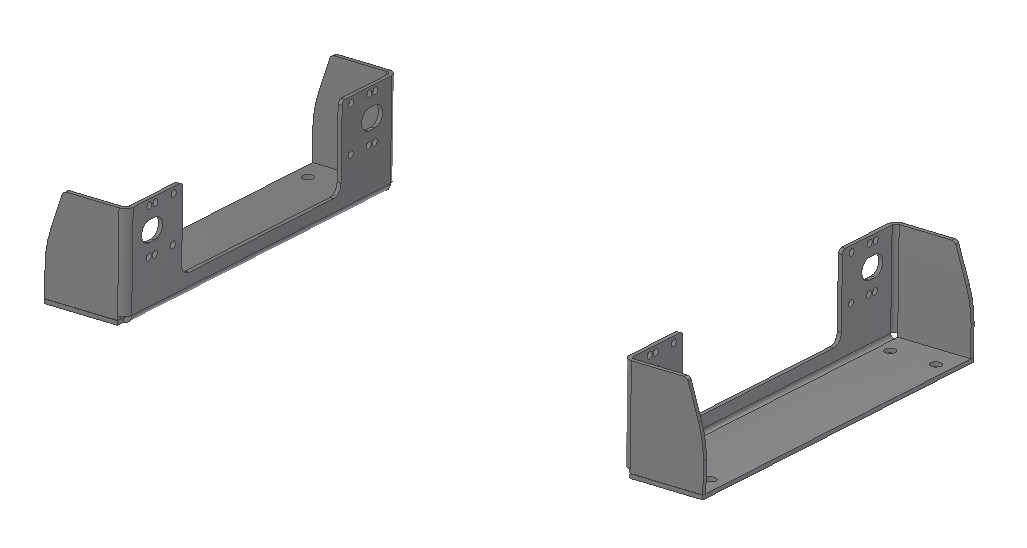

The brackets are made of folded stainless steel (inox) plate, so they are rigid and corrosion-resistant. They fit all Fairino 2 kW MINI controllers, both the AC and DC version.

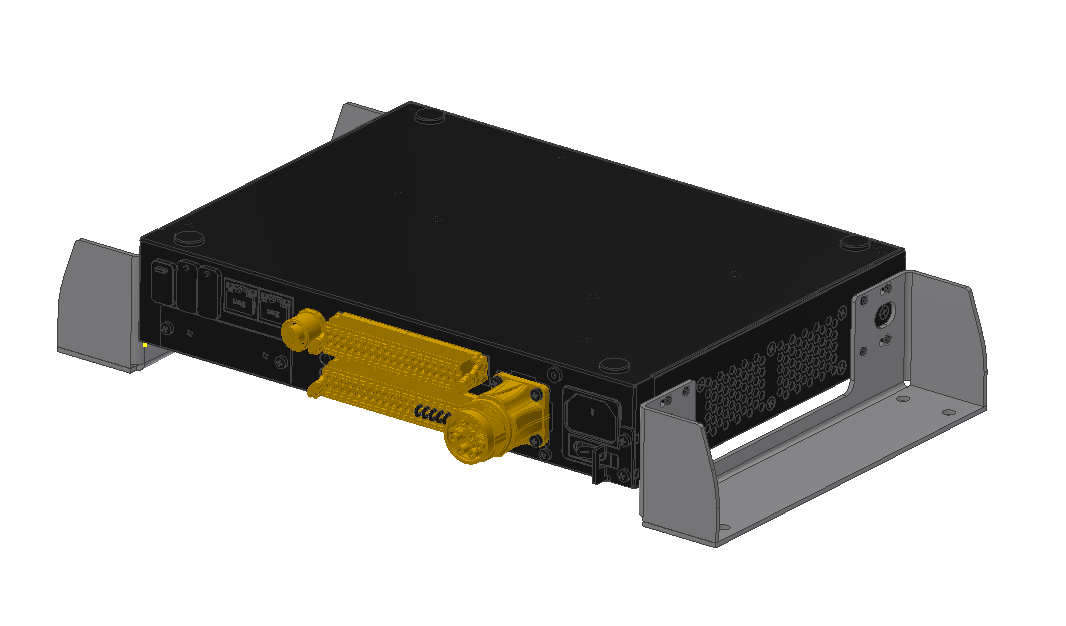

Mounting is simple: the screws that are already in the controller housing are reused to fix the controller to the bracket — no modifications to the controller needed. You then fasten the bracket to the back panel of your cabinet or frame with your own screws.

Three versions are available: for a single controller, for 2 controllers and for 4 controllers. The 2× and 4× versions stack the controllers vertically with ventilation openings kept clear, ideal for multi-cobot installations where cabinet space is limited.
