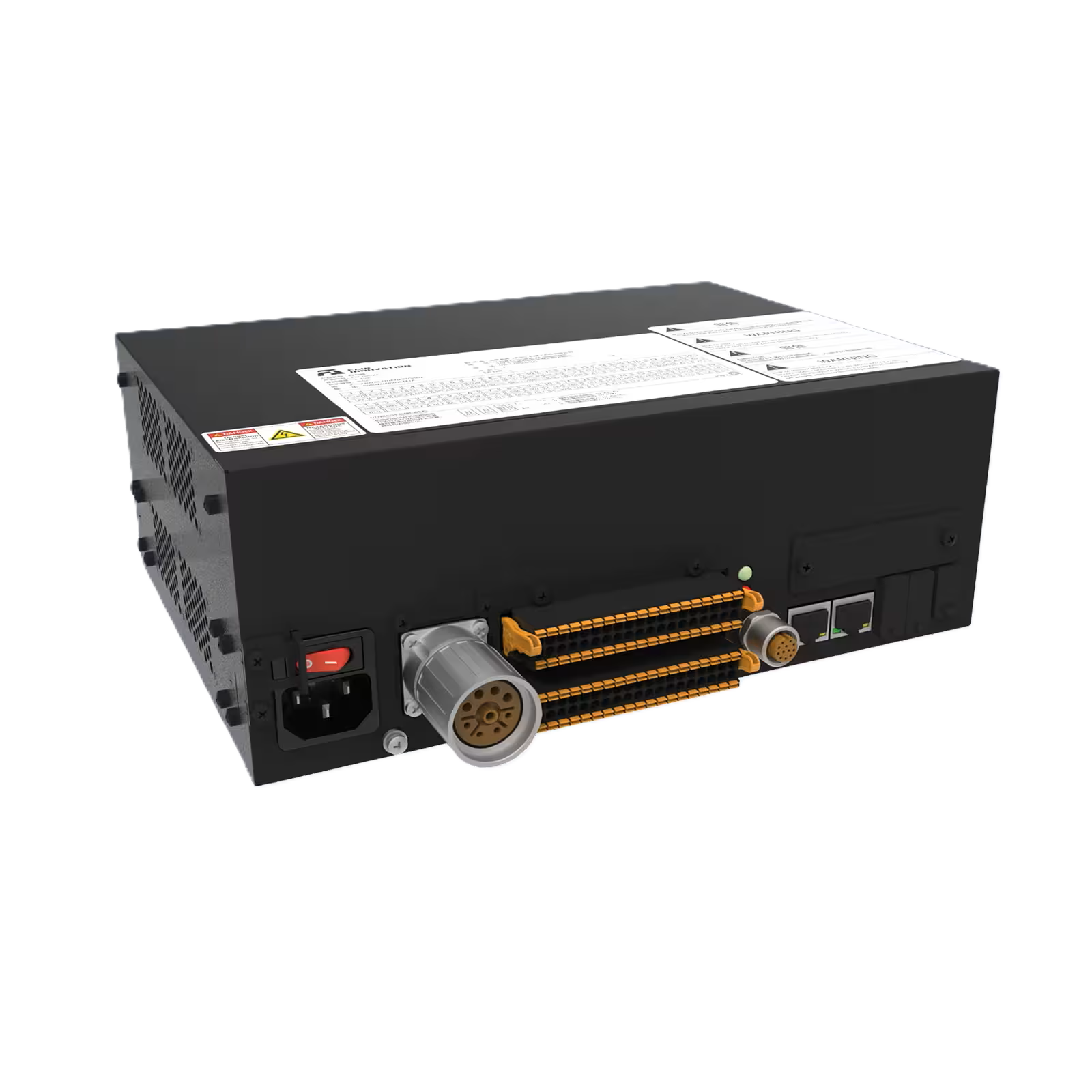

The Fairino AC Controller 5kW is engineered to deliver superior performance and reliability for demanding industrial automation applications. Designed specifically for high-payload Fairino cobots, it provides stable and precise motion control for heavy-duty operations such as palletizing, machine tending, and material handling.
Powered by a standard AC supply, this controller is ideal for fixed industrial installations requiring continuous and dependable operation. It integrates seamlessly into modern production environments through support for TCP/IP and Modbus TCP/RTU, with optional industrial fieldbus protocols including PROFINET, EtherCAT, EtherNet/IP, and CC-Link.
A comprehensive Software Development Kit (SDK) supporting C#, C++, Python, ROS, and ROS2 enables easy customization and advanced system integration. Its robust IP54-rated enclosure ensures reliable performance in challenging industrial conditions.
The unit is supplied without cables, allowing integrators to select the appropriate power, communication, and robot cables based on their specific setup.
Technical Specifications
- Controller Type: AC Industrial Robot Controller
- Rated Power: 5 kW
- Protection Rating: IP54
- Operating Temperature: 0–45°C
- Operating Humidity: Up to 90% RH (non-condensing)
- Digital Inputs (DI): 16
- Digital Outputs (DO): 16
- Analog Inputs (AI): 2
- Analog Outputs (AO): 2
- High-Speed Pulse Inputs: 2
- I/O Power Supply: 24 V / 1.5 A
- Standard Communication: TCP/IP, Modbus TCP/RTU
- Optional Communication: PROFINET, EtherCAT, EtherNet/IP, CC-Link
- Software Development Kit: C#, C++, Python, ROS, ROS2
- Enclosure Material: Galvanized sheet metal
- Input Power Supply: 200–240 VAC, 50/60 Hz
- Protection Class: IP54
Compatible Fairino Cobots
The Fairino AC Controller 5kW is designed for high-payload models:
Applications
- Palletizing and depalletizing
- Machine tending
- Heavy-duty pick-and-place
- Packaging and logistics
- Industrial manufacturing
- Material handling
- End-of-line automation
